Task3 application is 3rd version of the task application.

Main components

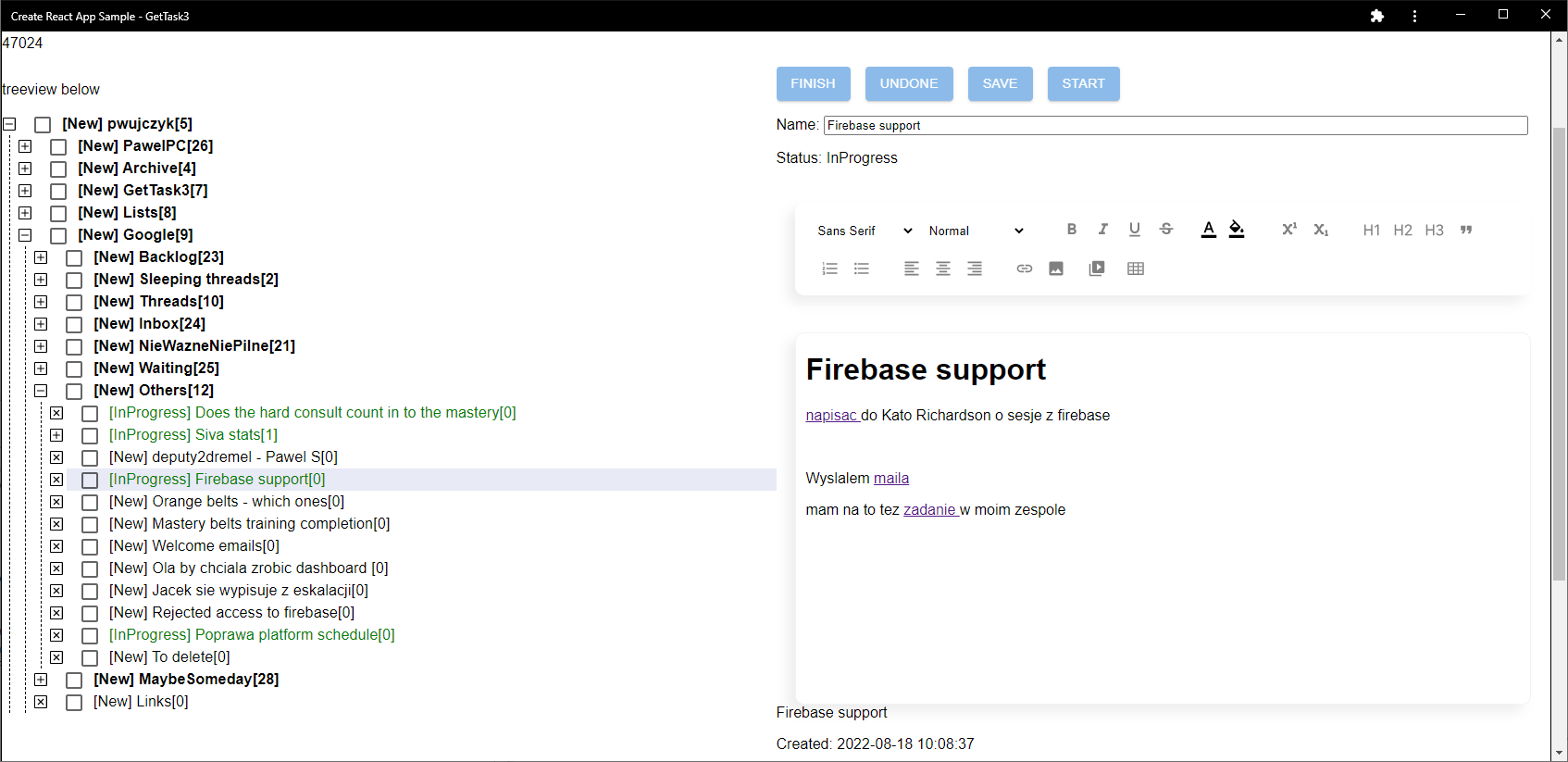

• web client - allows to manage tasks through web

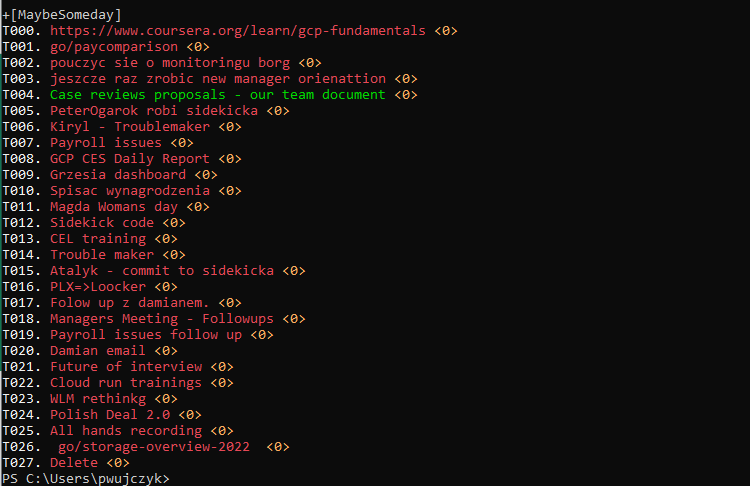

• powershell client - allows to manage tasks through powershell

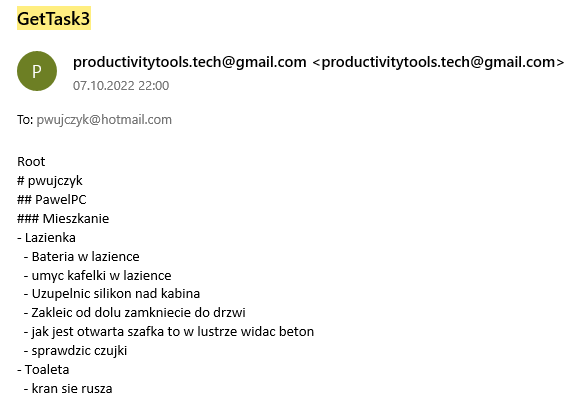

• reporting - sends daily reports about tasks finished

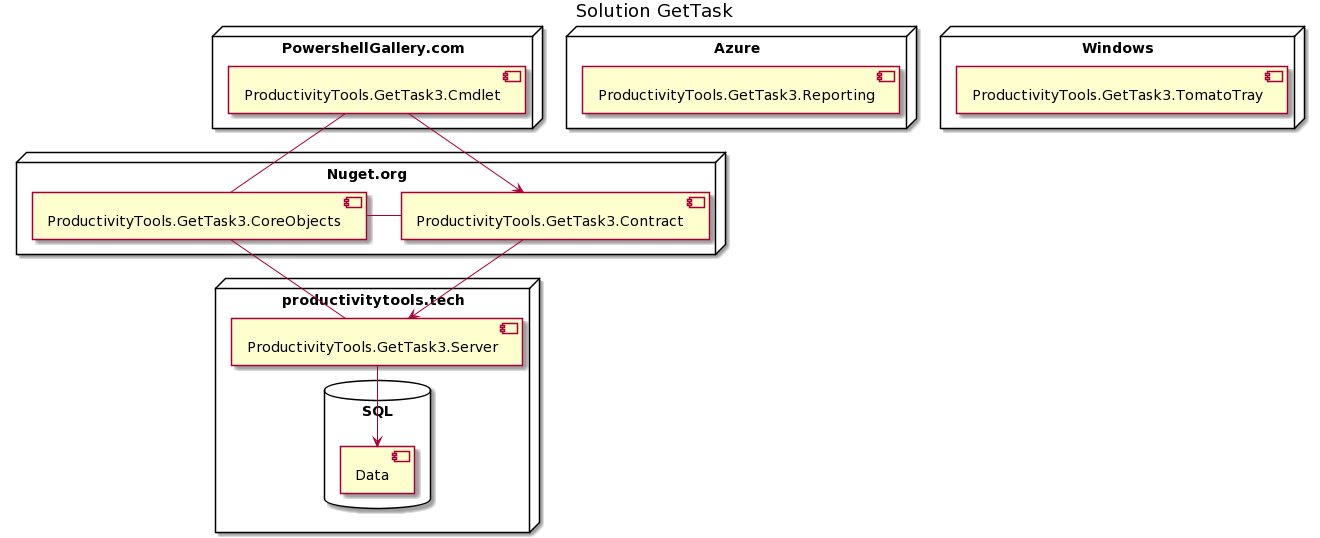

Task3 solution architecture

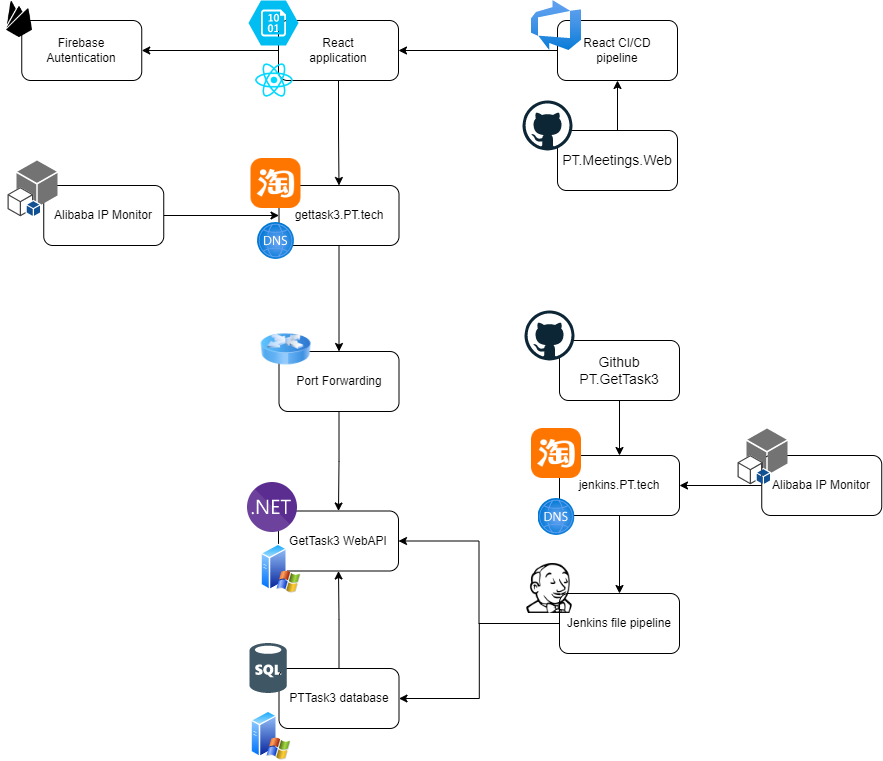

Physical architecture

• React application is stored as static web on the Azure Storage
• Alibaba IP Monitor WebApi is hosted on my local server where I do not have static ip. So Alibaba IP monitor checks if my external IP changed and update DNS. Domain is parked on the Alibaba
• GetTask3 WebApi is written in the .NET and it is hosted on my server
• PTTask3 database is SQL and it is hosted on my server
• Jenkins file pipeline CI/CD on the server side is done with the Jenkins
• Github PT.GetTask3 is repository for webapi. When push to repository is done, push to the jenkins webhook jenkis.PT.Tech is done
• Jenkins.PT.Tech - address where all webhooks from github are sent. From here Jenkins catches them and invoke his actions.
